Product detail

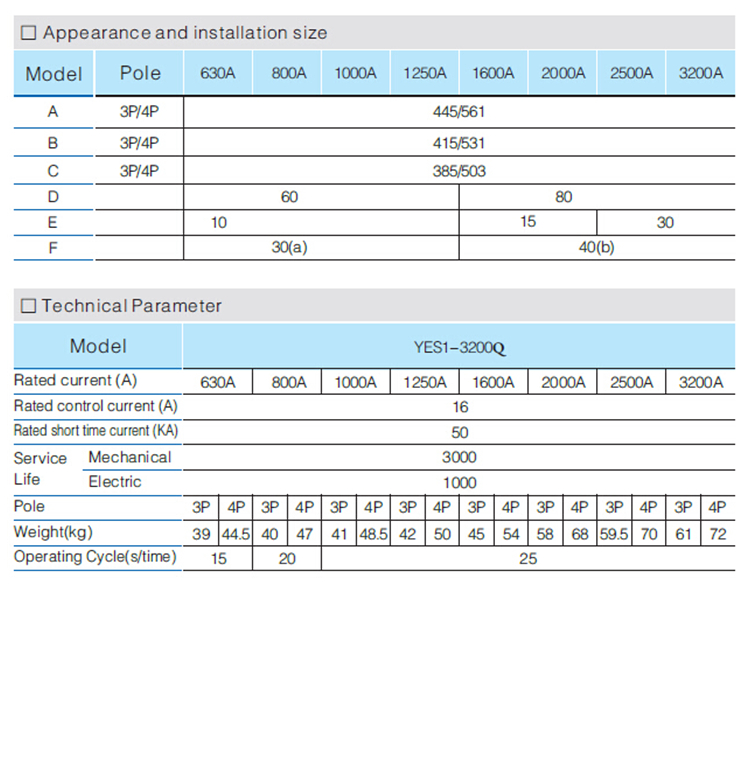

Model | YES1-3200Q | |||||||||||||||||||
Rated current(A) | 630 | 800 | 1000 | 1250 | 1600 | 2000 | 2500 | 3200 | ||||||||||||
Rated control current(A) | 16 | |||||||||||||||||||
Rated short time current(kA) | 50 | |||||||||||||||||||
The rated impulse withstand voltage(kV) | 8 | |||||||||||||||||||
Using classes | AC-33iB | |||||||||||||||||||
Service | Mechanical | 2500 | 1500 | |||||||||||||||||
Electric | 500 | 500 | ||||||||||||||||||
Pole | 3P | 4P | 3P | 4P | 3P | 4P | 3P | 4P | 3P | 4P | 3P | 4P | 3P | 4P | 3P | 4P | ||||
Weight(kg) | 39 | 44.5 | 40 | 47 | 41 | 48.5 | 42 | 50 | 45 | 54 | 58 | 68 | 59.5 | 70 | 61 | 72 | ||||
Operating cycle(s/time) | 15 | 20 | 25 | |||||||||||||||||
| Name | Content |
| Enterprise code | Shanghai Yuhuang electric co.,ltd |
| Product category | PC class Automatic Transfer Switch |
| Design code | 1 |
| Current rank | NA/N/C:32A,125A,250A,400A,630ASA/S/LA/L:125A,250A,630AG:100A,250A,630A,1600A,3200AM:1600A AQ:3200A |
| Product code | NA:16A~630A(Integral type,two positions)N:16A~630A(Split type,two positions)C:16A~630A(Split type,two positions)M:630A~1600A(Split type,two positions)Q:630A~3200A(Split type,two positions)SA:20A~630A(Integral type,Three positions)S:20A~630A( Split type,Three positions)LA:20A~630A(Integral type,Two positions)L:20A~630A(Split type,two positions) G:GA:16A~3200A(With fire protection function) GA1:16A~100A(Without fire protection function) |
| Pole | 2P(125A and below 125A products),3P,4P |
| Rated current | 16A~3200A |
| Working mode | R=Self-input and self-recoverS=Self-input without self-recoverF=Utility-Generator |
