| Quantity(Pieces) | 1 - 100 | >100 |
| Est. Time(days) | 7 | To be negotiated |

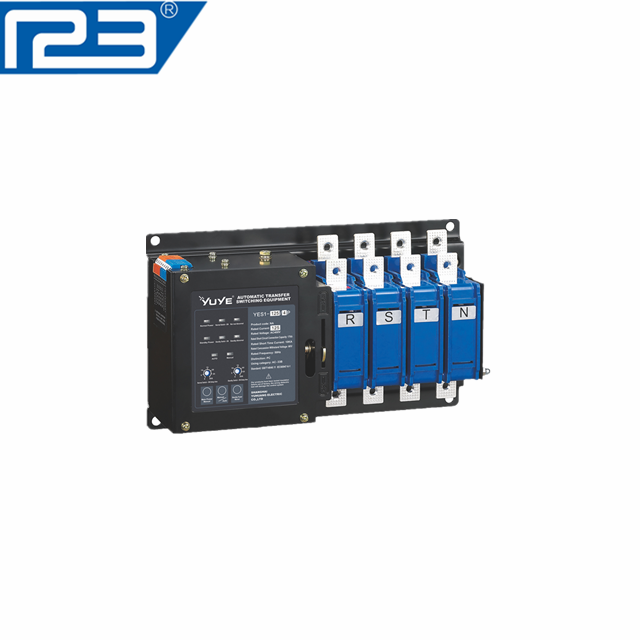

We’ve been experienced manufacturer. Wining the majority of your crucial certifications of its market for Newly Arrival China Automatic Transfor Switch, We would like to take this opportunity to establish long-term business relationships with clients from all over the world.
We’ve been experienced manufacturer. Wining the majority of your crucial certifications of its market for Automatic Transfor Switch, China ATS, We have now established long-term, stable and good business relationships with many manufacturers and wholesalers around the world. Currently, we have been looking forward to even greater cooperation with overseas customers based on mutual benefits. You should feel free to contact us for more details.
Product detail

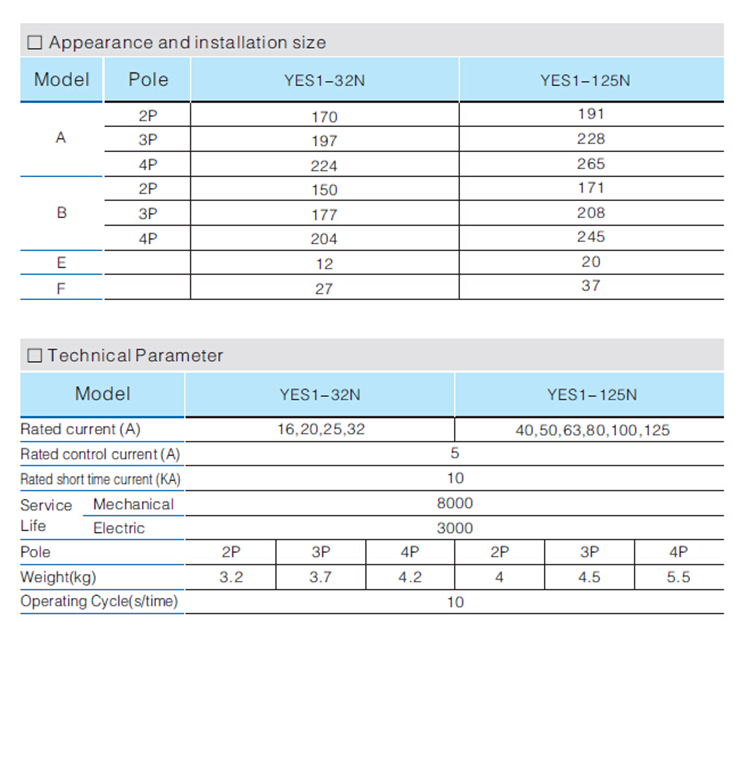

Model | YES1-32N | YES1-125N | |||||
Rated current(A) | 16,20,25,32 | 40,50,63,80,100,125 | |||||
Rated control current(A) | 5 | ||||||
Rated short time current(kA) | 10 | ||||||
The rated impulse withstand voltage(kV) | 8 | ||||||
Using classes | AC-33B | ||||||
Service | Mechanical | 20000 | |||||
Electric | 6000 | ||||||
Pole | 2P | 3P | 4P | 2P | 3P | 4P | |
Weight(kg) | 3.2 | 3.7 | 4.2 | 4 | 4.5 | 5.5 | |
Operating cycle(s/time) | 10 | ||||||
| Name | Content |
| Enterprise code | Shanghai Yuhuang electric co.,ltd |
| Product category | PC class Automatic Transfer Switch |
| Design code | 1 |
| Current rank | NA/N/C:32A,125A,250A,400A,630ASA/S/LA/L:125A,250A,630AG:100A,250A,630A,1600A,3200AM:1600A AQ:3200A |
| Product code | NA:16A~630A(Integral type,two positions)N:16A~630A(Split type,two positions)C:16A~630A(Split type,two positions)M:630A~1600A(Split type,two positions)Q:630A~3200A(Split type,two positions)SA:20A~630A(Integral type,Three positions)S:20A~630A( Split type,Three positions)LA:20A~630A(Integral type,Two positions)L:20A~630A(Split type,two positions)G:GA:16A~3200A(With fire protection function)GA1:16A~100A(Without fire protection function) |
| Pole | 2P(125A and below 125A products),3P,4P |
| Rated current | 16A~3200A |
| Working mode | R=Self-input and self-recoverS=Self-input without self-recoverF=Utility-Generator |
