Our well-equipped facilities and superb good quality control throughout all stages of manufacturing enables us to guarantee total buyer gratification for Factory Cheap Hot 4p Automatic Transfer Switch ATS, We warmly welcome clients from all around the world for almost any sort of cooperation with us to build a mutual advantage potential. We’ve been devoting ourselves wholeheartedly to supply consumers the very best company.
Our well-equipped facilities and superb good quality control throughout all stages of manufacturing enables us to guarantee total buyer gratification for China Automatic Transfer Switch and 32A ATS, All the imported machines effectively control and guarantee the machining precision for the merchandise. Besides, we now have a group of high-quality management personnels and professionals, who make the high-quality goods and have the ability to develop new products to expand our market home and abroad. We sincerely expect customers come for a blooming business for both of us.
Product detail

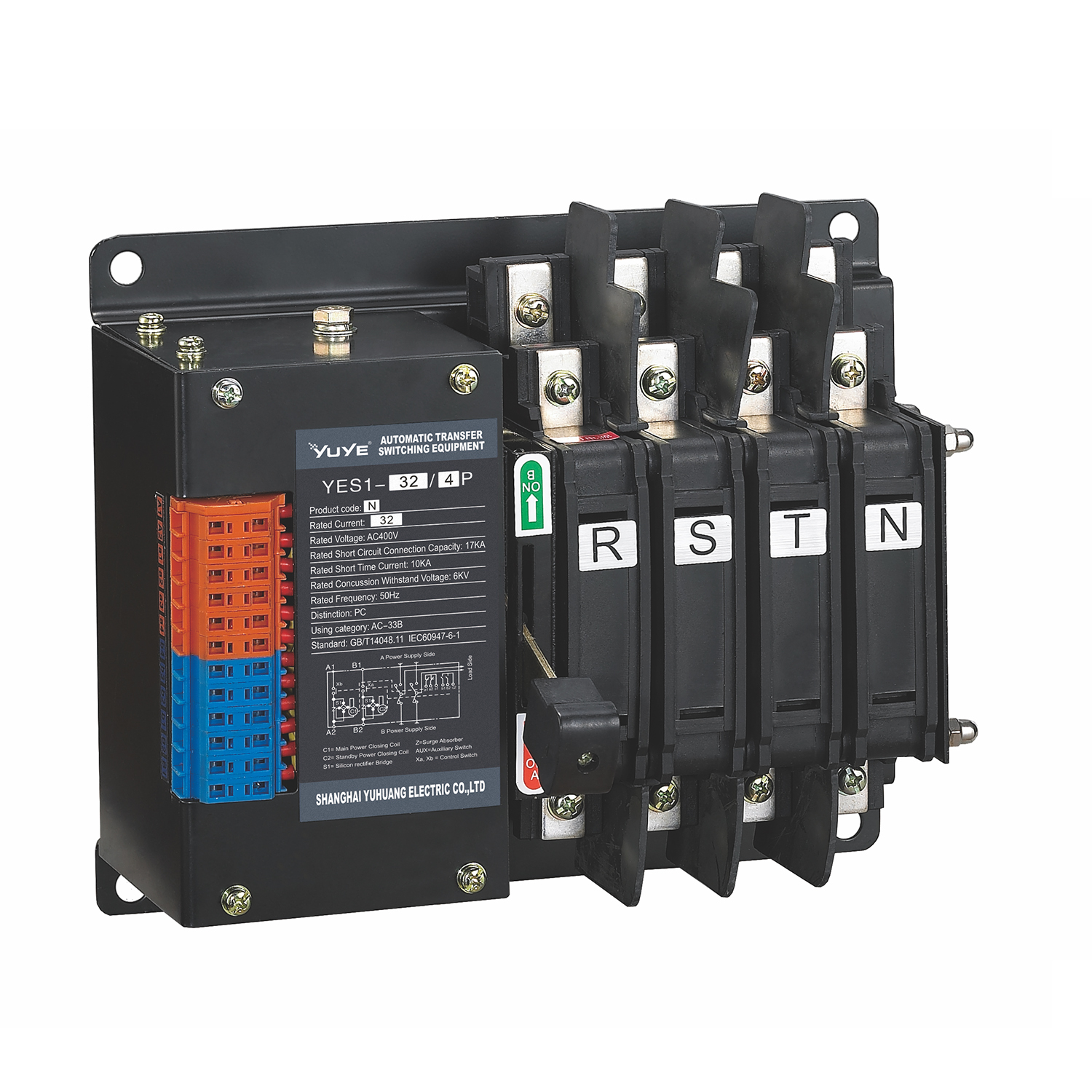

Model | YES1-32C | YES1-125C | |||||
Rated current(A) | 16,20,25,32 | 40,50,63,80,100,125 | |||||
Rated control current(A) | 5 | ||||||
Rated short time current(kA) | 10 | ||||||
The rated impulse withstand voltage(kV) | 8 | ||||||
Using classes | AC-33B | ||||||
Service | Mechanical | 20000 | |||||
Electric | 6000 | ||||||
Pole | 2P | 3P | 4P | 2P | 3P | 4P | |
Weight(kg) | 3.2 | 3.7 | 4.2 | 4 | 4.5 | 5.5 | |
Operating cycle(s/time) | 10 | ||||||
| Name | Content |
| Enterprise code | Shanghai Yuhuang electric co.,ltd |
| Product category | PC class Automatic Transfer Switch |
| Design code | 1 |
| Current rank | NA/N/C:32A,125A,250A,400A,630ASA/S/LA/L:125A,250A,630AG:100A,250A,630A,1600A,3200AM:1600A AQ:3200A |
| Product code | NA:16A~630A(Integral type,two positions)N:16A~630A(Split type,two positions)C:16A~630A(Split type,two positions)M:630A~1600A(Split type,two positions)Q:630A~3200A(Split type,two positions)SA:20A~630A(Integral type,Three positions)S:20A~630A( Split type,Three positions)LA:20A~630A(Integral type,Two positions)L:20A~630A(Split type,two positions)G:GA:16A~3200A(With fire protection function)GA1:16A~100A(Without fire protection function) |
| Pole | 2P(125A and below 125A products),3P,4P |
| Rated current | 16A~3200A |
| Working mode | R=Self-input and self-recoverS=Self-input without self-recoverF=Utility-Generator |
