| Quantity(Pieces) | 1 - 100 | >100 |
| Est. Time(days) | 7 | To be negotiated |
We not only will try our greatest to offer you excellent services to just about every client, but also are ready to receive any suggestion offered by our buyers for China Gold Supplier for China Automatic Changeover Switch, Being a young growing company, we might not the best, but we are trying our best to be your good partner.
We not only will try our greatest to offer you excellent services to just about every client, but also are ready to receive any suggestion offered by our buyers for Changeover Switch, China Transfer Switch, Our company is working by the operation principle of “integrity-based, cooperation created, people oriented, win-win cooperation”. We hope we can have a friendly relationship with businessman from all over the world
Product detail

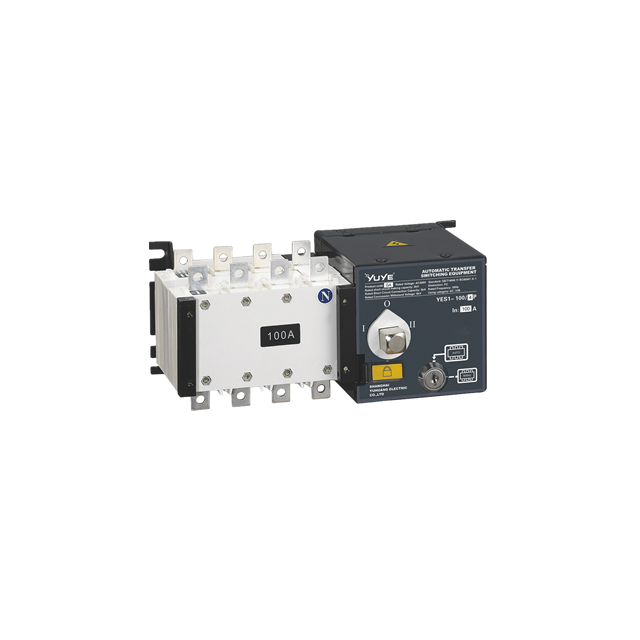

Model | YES1-32NA | YES1-125NA | |||||
Rated current(A) | 16,20,25,32 | 40,50,63,80,100,125 | |||||
Rated control current(A) | 5 | ||||||
Rated short time current(kA) | 10 | ||||||
The rated impulse withstand voltage(kV) | 8 | ||||||
Service | Mechanical | 20000 | |||||
Electric | 6000 | ||||||
Pole | 2P | 3P | 4P | 2P | 3P | 4P | |
Weight(kg) | 4.2 | 4.7 | 5.2 | 5 | 5.5 | 6.5 | |
Operating cycle(s/time) | 10 | ||||||
| Name | Content |
| Enterprise code | Shanghai Yuhuang electric co.,ltd |
| Product category | PC class Automatic Transfer Switch |
| Design code | 1 |
| Current rank | NA/N/C:32A,125A,250A,400A,630ASA/S/LA/L:125A,250A,630AG:100A,250A,630A,1600A,3200AM:1600A AQ:3200A |
| Product code | NA:16A~630A(Integral type,two positions)N:16A~630A(Split type,two positions)C:16A~630A(Split type,two positions)M:630A~1600A(Split type,two positions)Q:630A~3200A(Split type,two positions)SA:20A~630A(Integral type,Three positions)S:20A~630A( Split type,Three positions)LA:20A~630A(Integral type,Two positions)L:20A~630A(Split type,two positions)G:GA:16A~3200A(With fire protection function)GA1:16A~100A(Without fire protection function) |
| Pole | 2P(125A and below 125A products),3P,4P |
| Rated current | 16A~3200A |
| Working mode | R=Self-input and self-recoverS=Self-input without self-recoverF=Utility-Generator |
